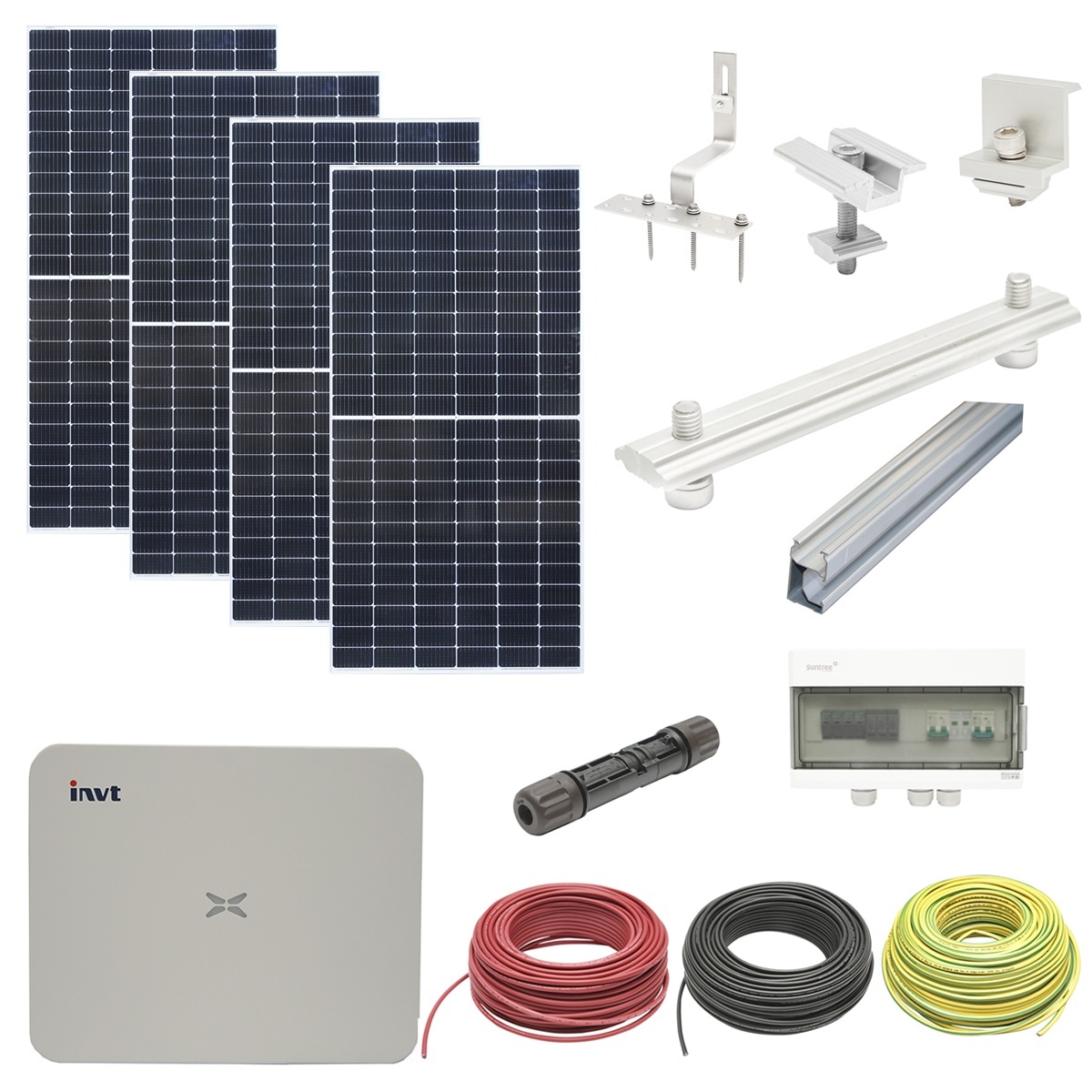

Sistem solar fotovoltaic trifazic, prosumator ON-GRID 5KW cu 12 panouri fotovoltaice Risen 450W prindere pe acoperis de tigla
Código producto - SKU
KIT5KW-XG5KTR.2
29.105,93 RON
(sin IVA)
35.218,18 RON
(incluye IVA)
¿Cómo podemos ayudar?
Descripción
DESCHIDE - FISA TEHNICA
DESCHIDE - MANUAL DE UTILIZARE

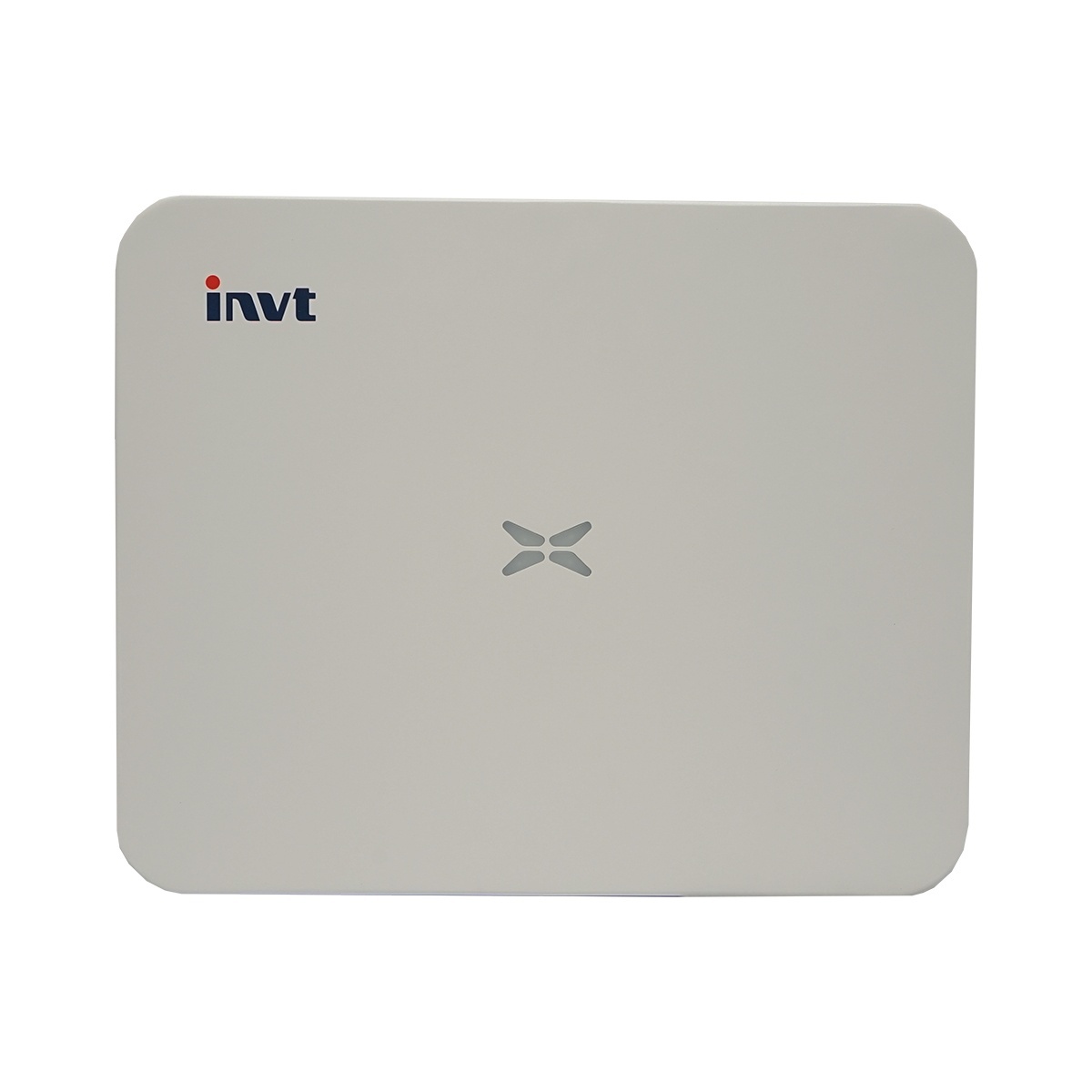

| 1 x INVERTOR iMARS ON-GRID 5KW, XG5KTR INVT | INVT |
| Puterea max de intrare DC | 8 Kw |
| Tensiunea max de intrare DC | 1100 V |
| Puterea max de iesire AC | 5 Kw |
| Tensiunea max de iesire AC | 400 V |
| Eficienta Europa | 98.4 % |
| Dimensiuni | 430 x 380 x 130 mm |
| Greutate | 12 kg |
| Protectie | IP 66 |

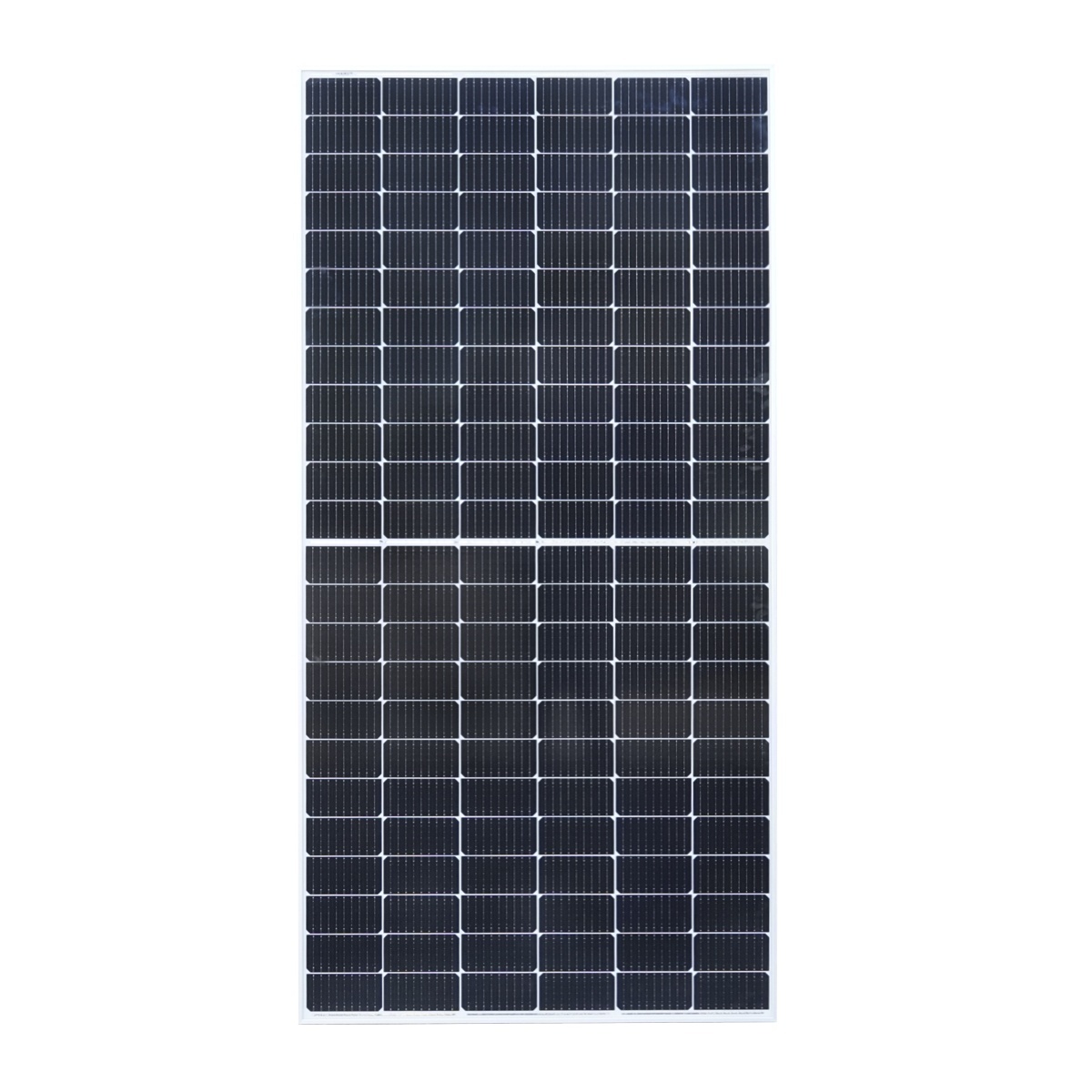

| 12 x PANOURI SOLARE FOTOVOLTAICE 450W | RISEN SOLAR |
| Model | RSM144-7-45M |
| Putere max Pmax | 450 W |
| Intensitate max | 10.90 A |
| Tensiune max | 41.30 V |
| Scurt circuit | 11.50 A |
| Tensiune circuit deschis | 49.7 V |
| Eficienta | 20.4 % |
| Dimensiuni | 2108 x 1048 x 35 mm |
| Greutate | 25 Kg |

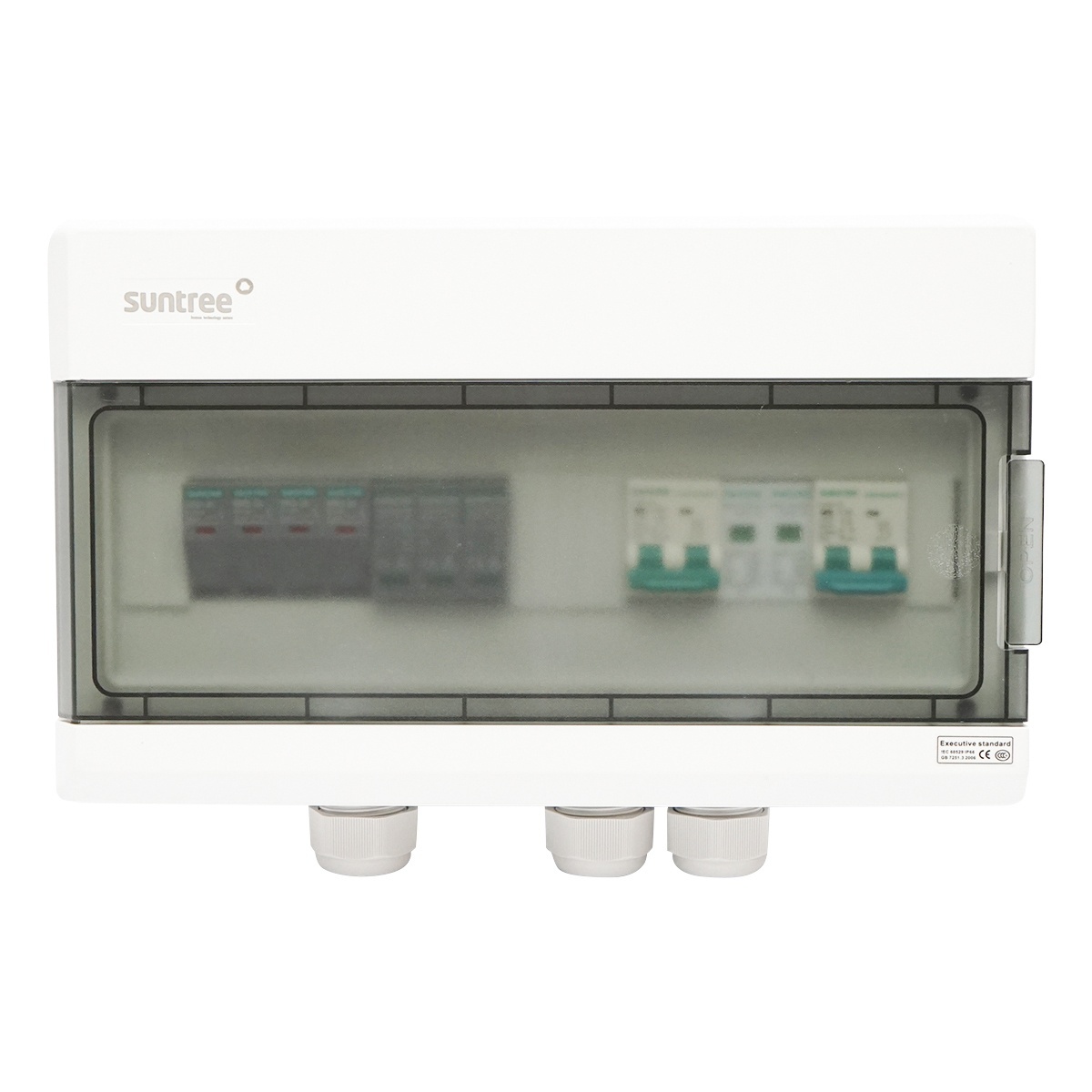

| 1 x TABLOU CU SIGURANTE ECHIPAT DC/AC | SUNTREE |

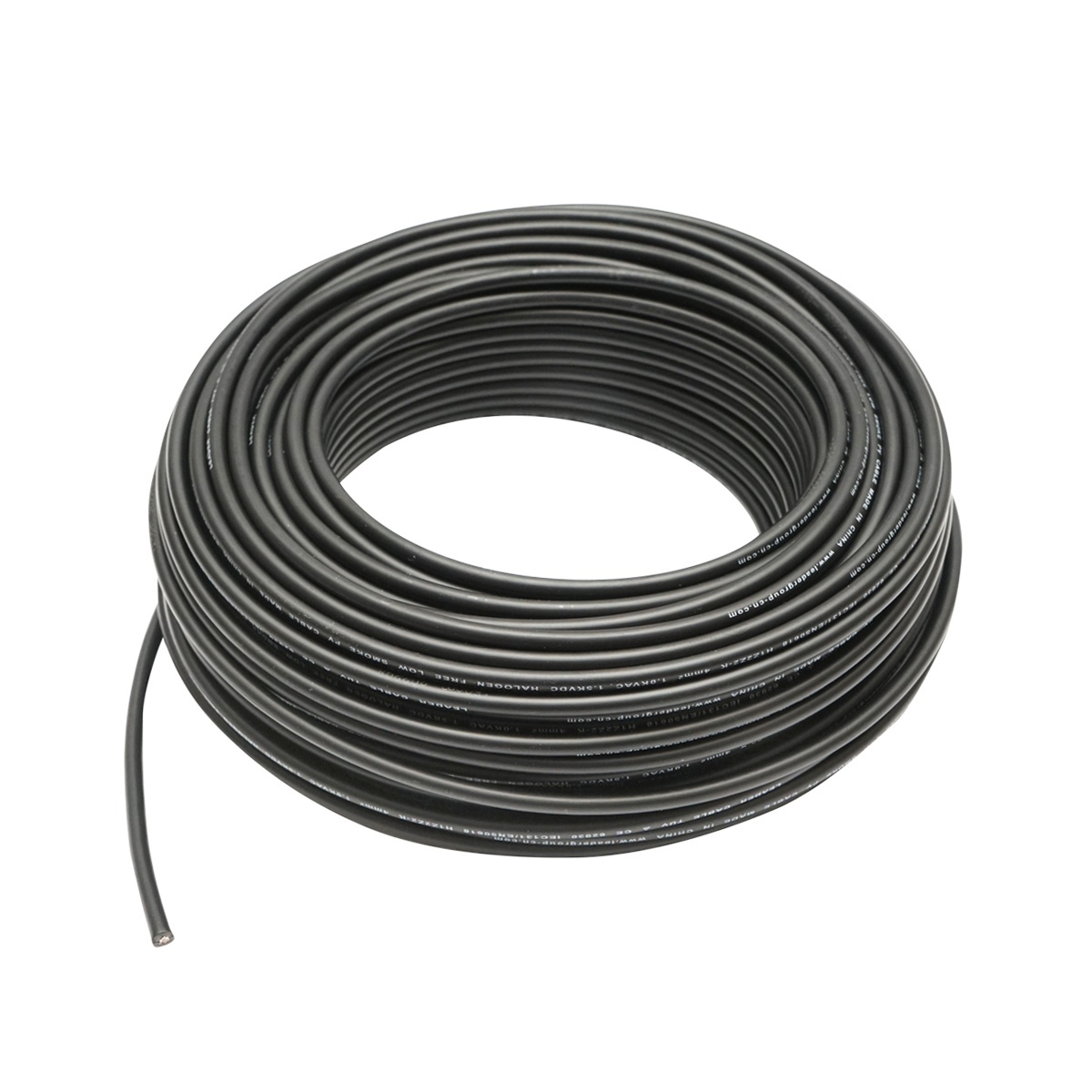

| 1 x ROLA CABLU 6mmx30m NEGRU 1.5KV, H1Z2Z2-K | 30m |

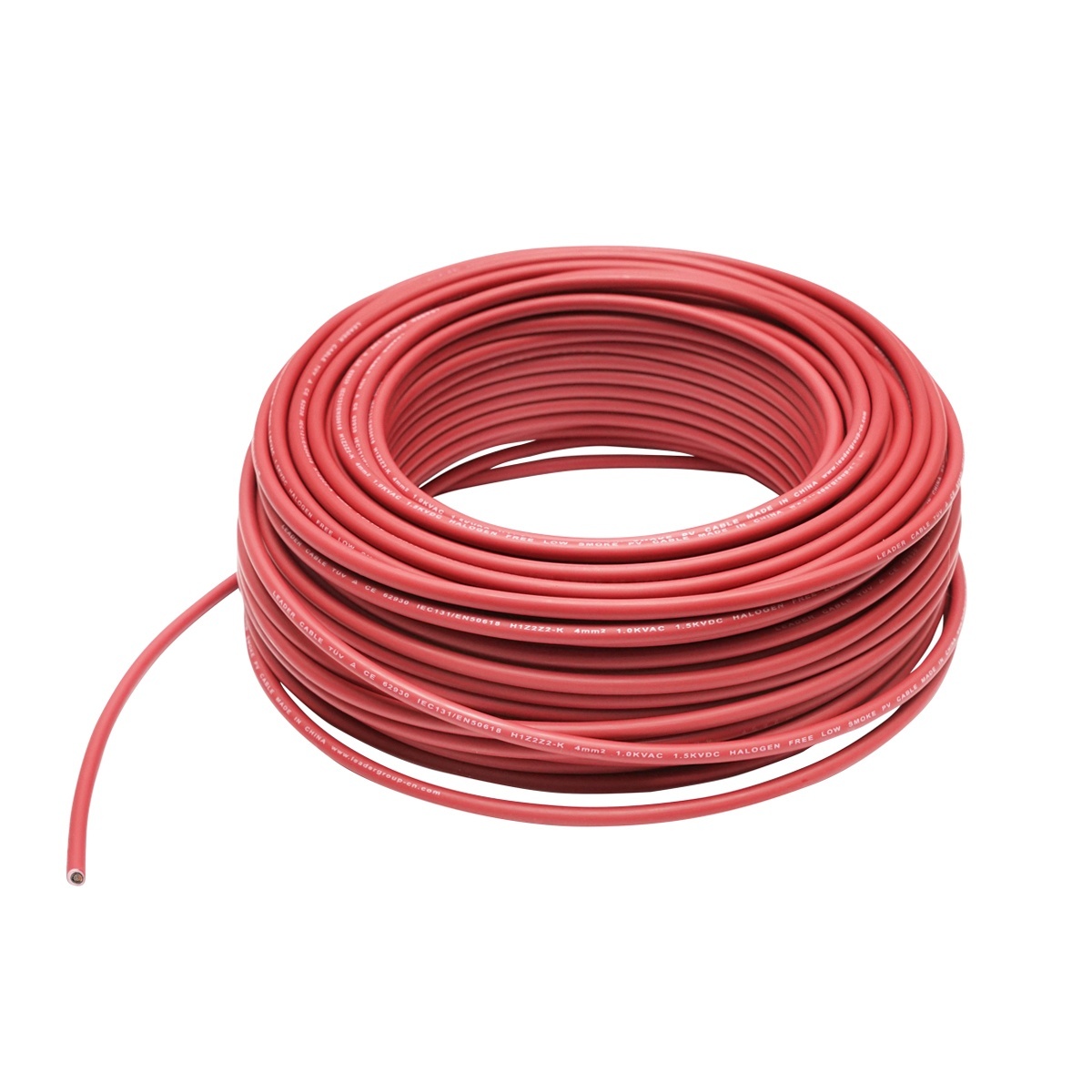

| 1 x ROLA CABLU 6mmx30m ROSU 1.5KV, H1Z2Z2-K | 30m |

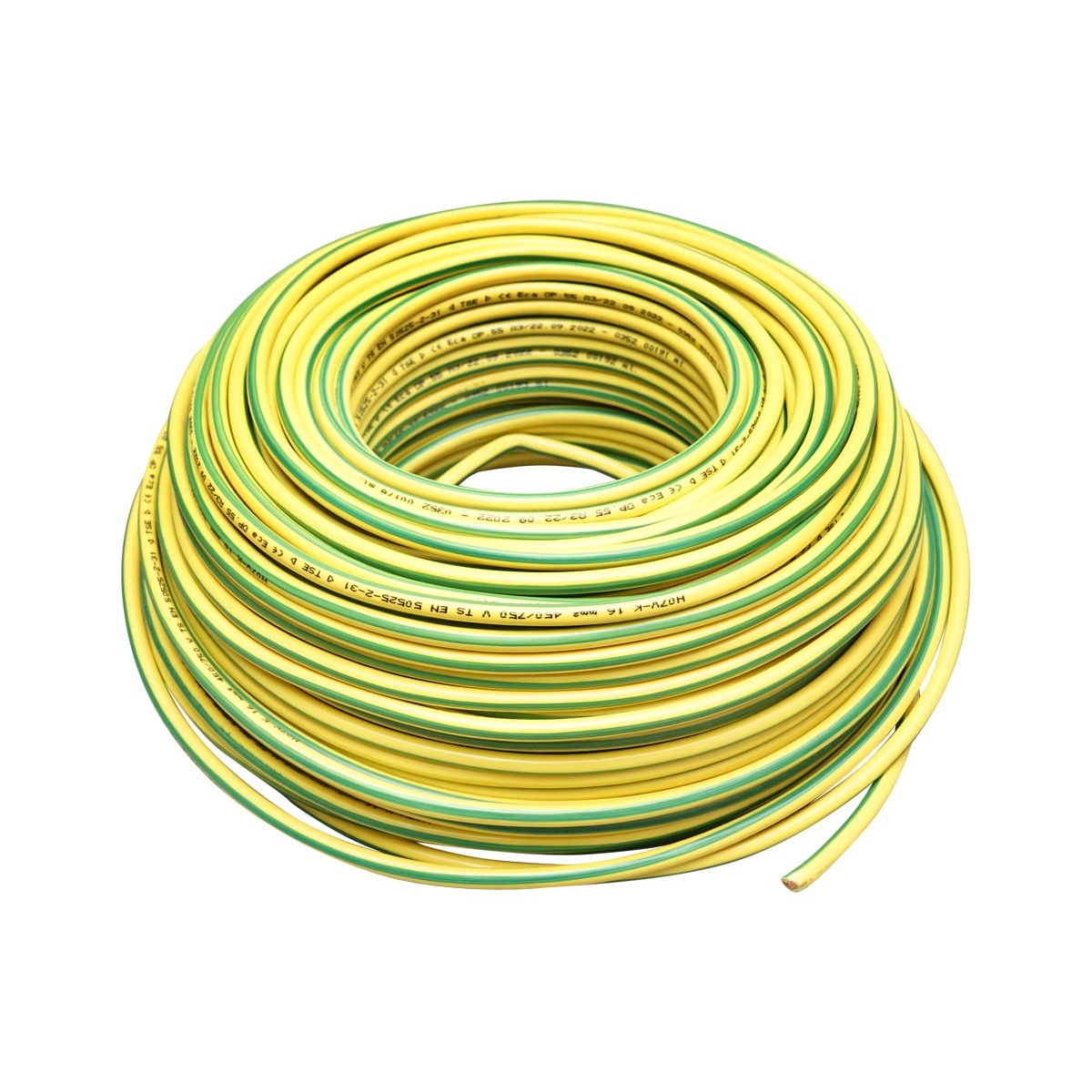

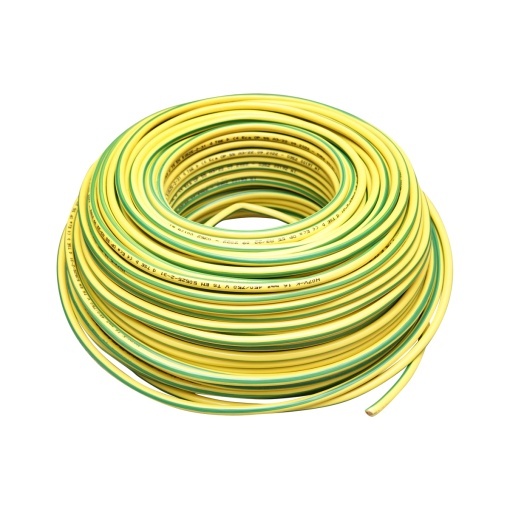

| 1 x CABLU IMPAMANTARE MYF 1x16mm, cupru, H07V-K v GALBEN-VERDE | 25m |

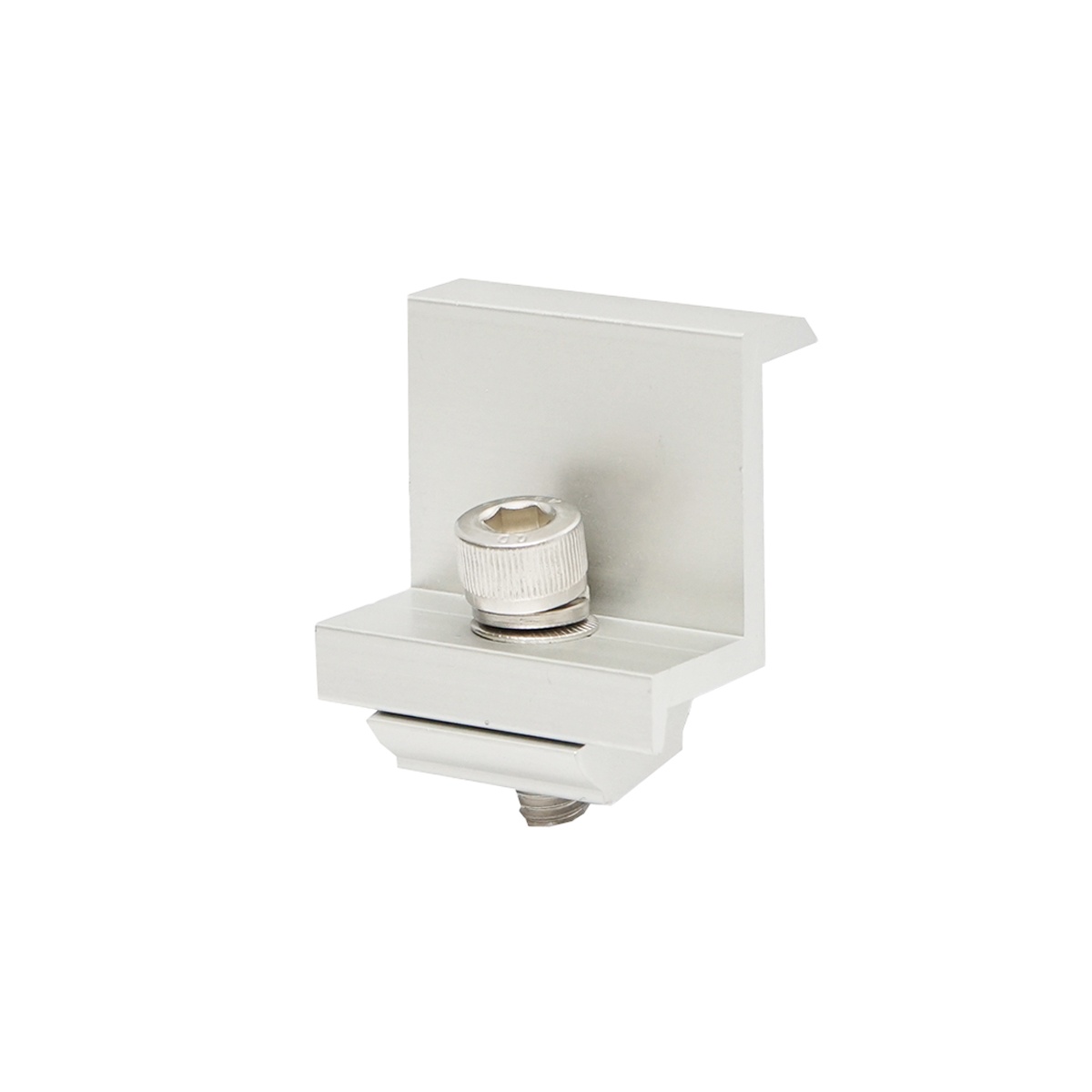

| 8 x CLEME CAPAT 35 mm | 8 buc |

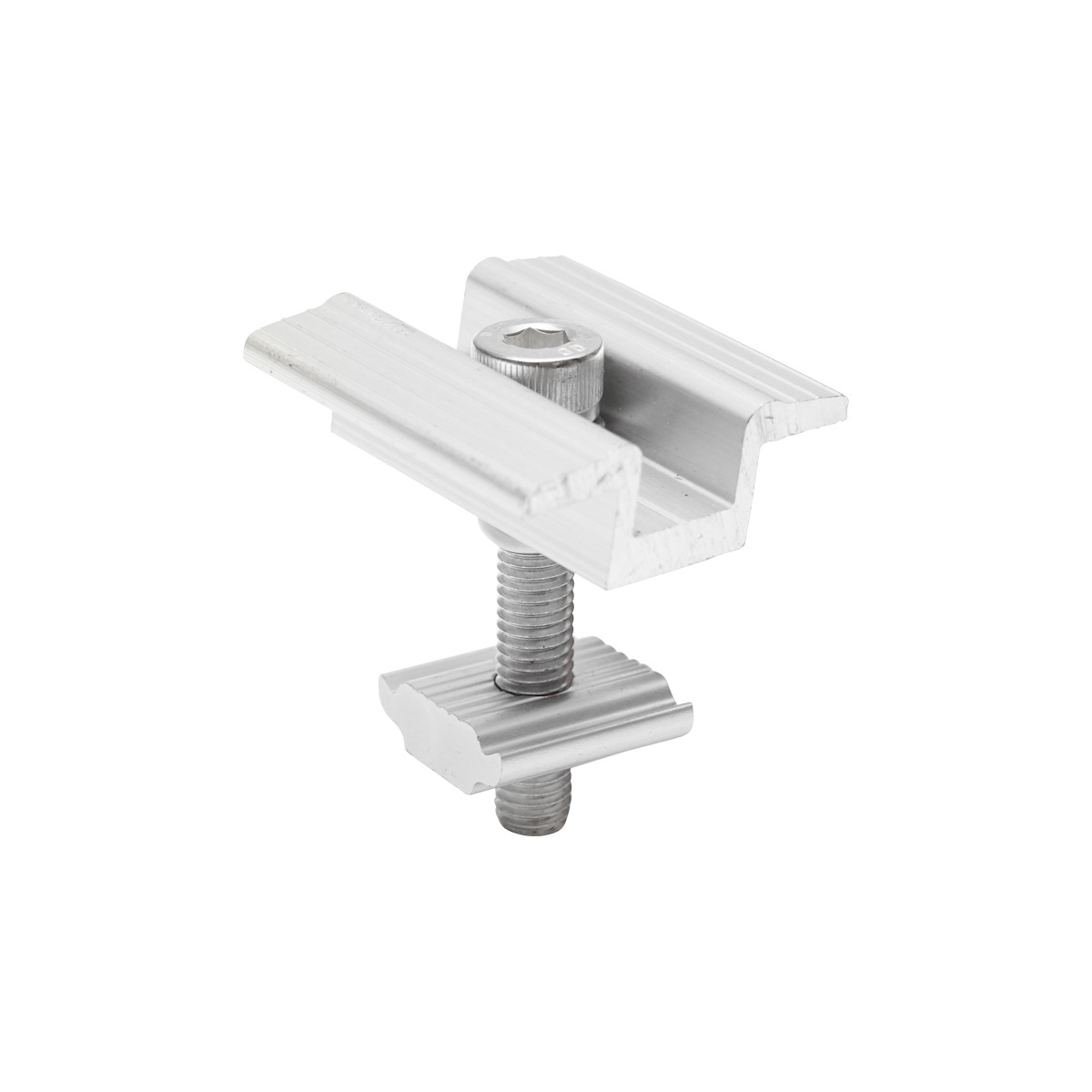

| 20 x CLEME INTERMEDIARE 35 mm | 20 buc |

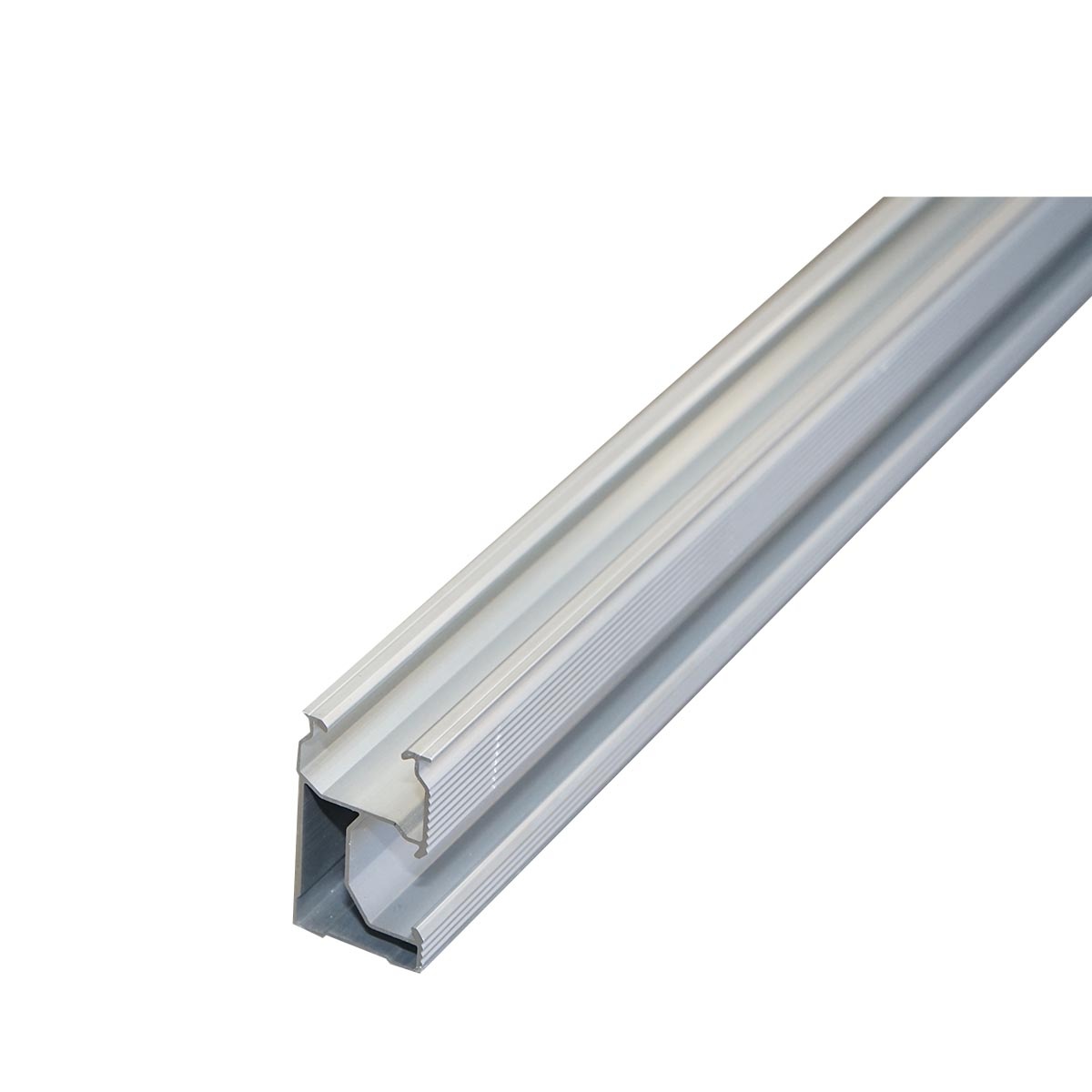

| 5 x SINA ALUMINIU 5.5 m | 5 buc |

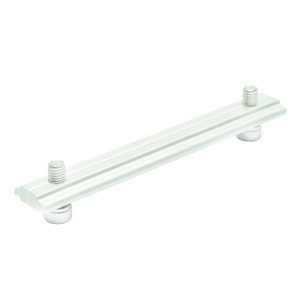

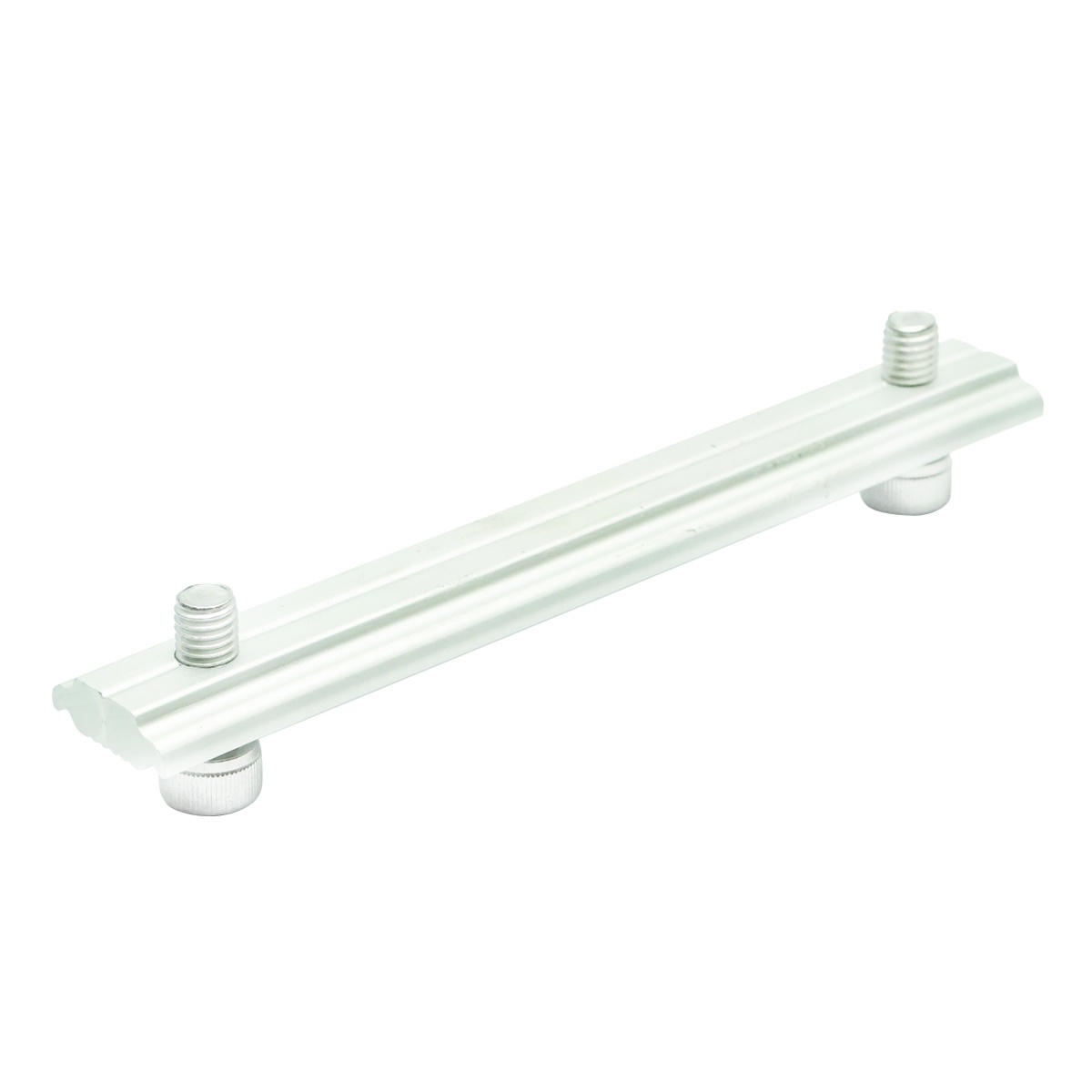

| 4 x ELEMENT IMBINARE | 4 buc |

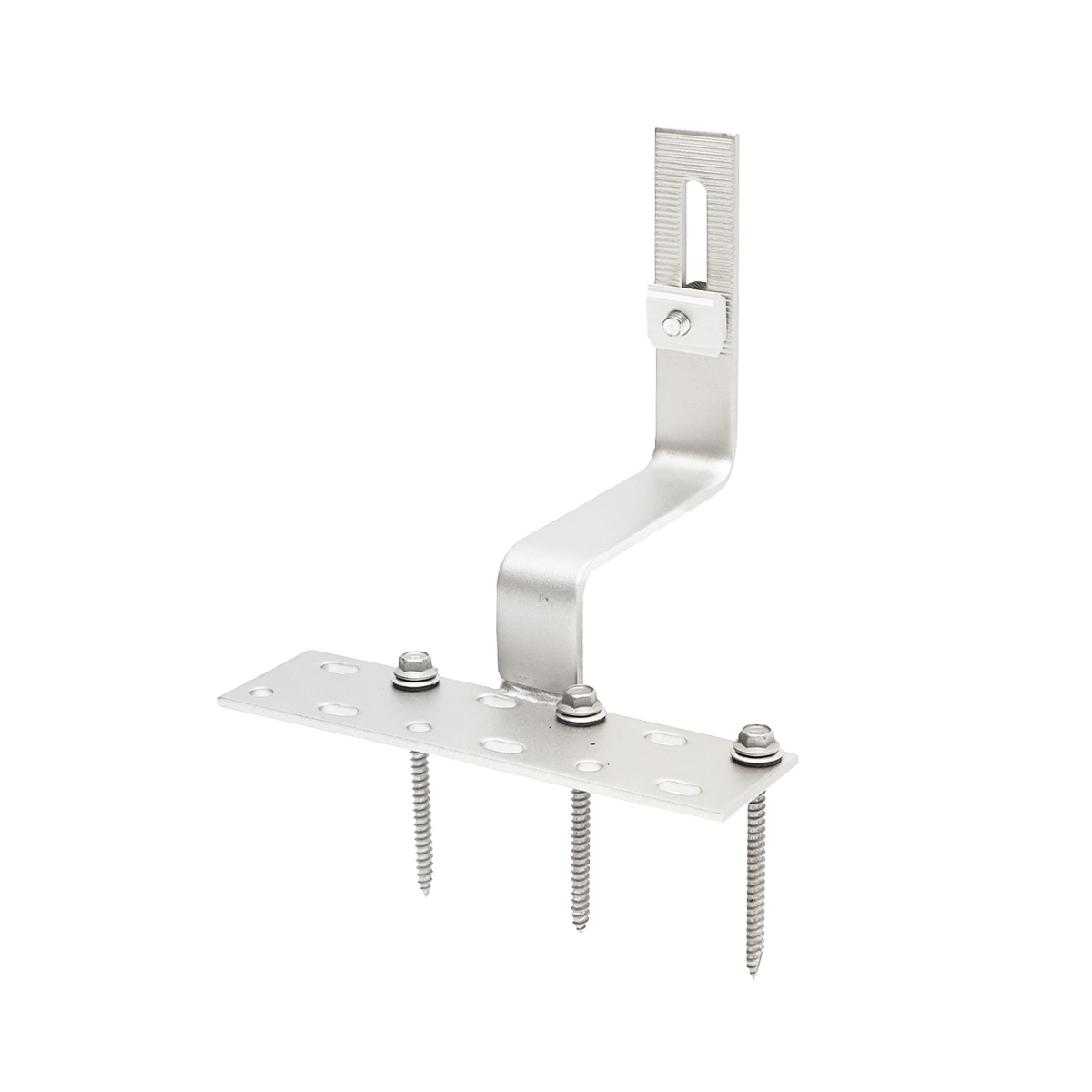

| 30 x CARLIGE FIXARE ACOPERIS TIGLA | 30 buc |

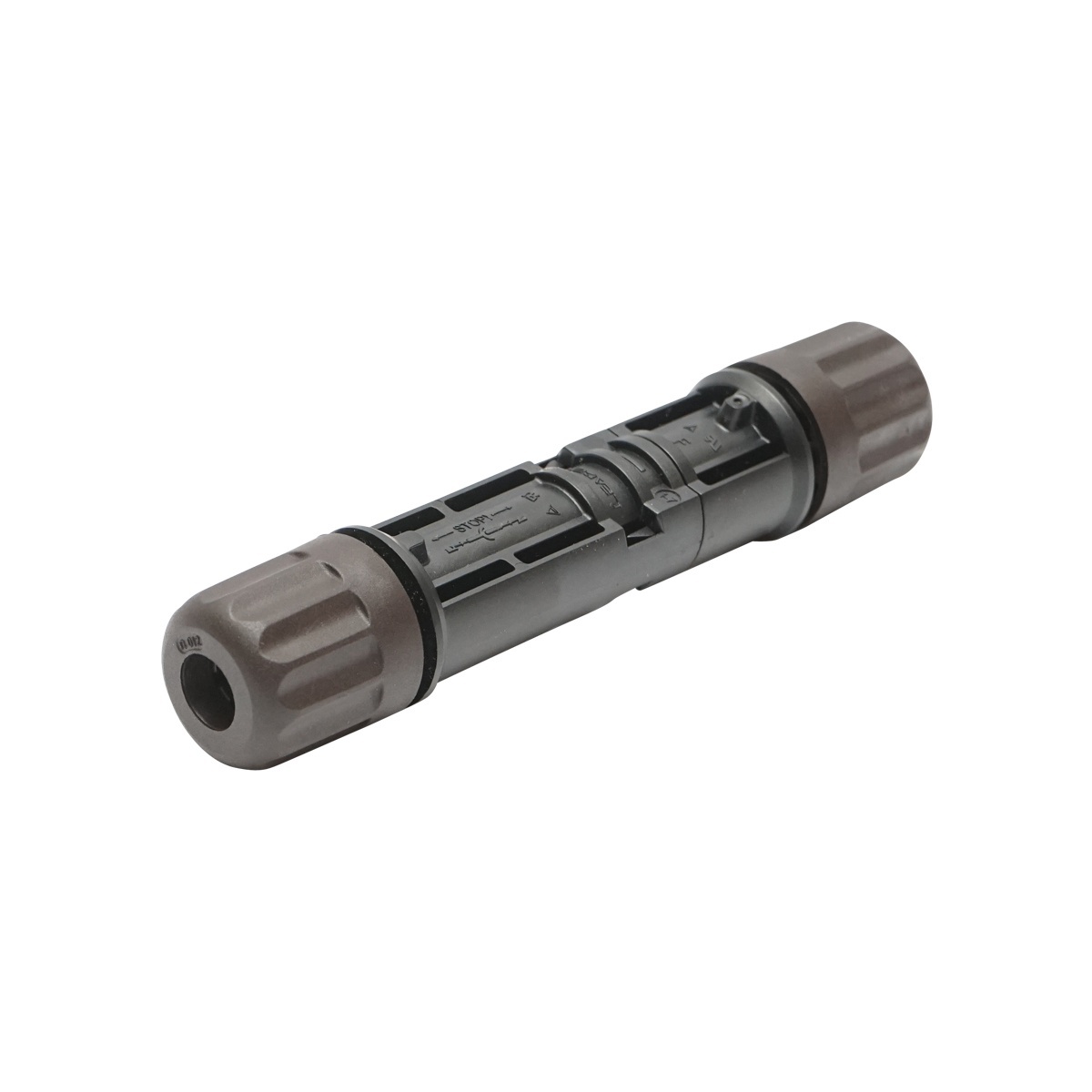

| 6 x SETURI CONECTORI MC4 | 6 buc |
Detalles
Productos recomendados
-
Kit sistem solar fotovoltaic trifazic ON-GRID 15KW cu panouri 36x450W prosumator WIFI cu sistem fixare acoperis tigla Breckner Germany68.210,40 RON (fara taxe)82.534,58 RON (taxe incluse) -
Carport 4 masini din aluminiu cu sistem printeri panouri solare fotovoltaice 13.75KW29.911,57 RON (fara taxe)36.193,00 RON (taxe incluse) -
Cutie distributie pentru sistem solar fotovoltaic 200KW, IP54, 400A, cu relu anti-insularizare19.994,42 RON (fara taxe)24.193,25 RON (taxe incluse) -
Clema acoperis tabla cu garnitura EPDM prinderi panou solar fotovoltaic sistem B Breckner Germany15,30 RON (fara taxe)18,51 RON (taxe incluse) -
Tablou electric protectie sistem solar fotovoltaic 400kW, 800A IP54 Suntree31.427,68 RON (fara taxe)38.027,49 RON (taxe incluse) -
Surub fundatie elicoidal 76x1800mm montaj la sol structuri panouri solare fotovoltaice134,13 RON (fara taxe)162,30 RON (taxe incluse) -
Panou solar 40W fotovoltaic monocristalin cu cablu de conectare 90cm si clesti baterie 570x400x25mm Breckner Germany72,42 RON (fara taxe)87,62 RON (taxe incluse) -

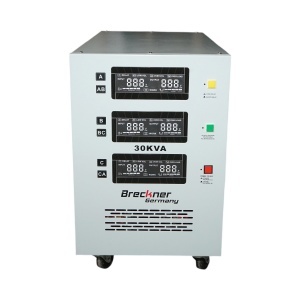

Stabilizator automat de tensiune 30KVA trifazat cu servomotor, bypass, afisaj LCD Breckner Germany5.290,57 RON (fara taxe)6.401,59 RON (taxe incluse) -

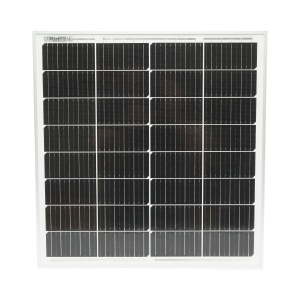

Panou solar 30W fotovoltaic monocristalin 420x405x25mm Breckner Germany90,17 RON (fara taxe)109,11 RON (taxe incluse) -
